This paper systematically investigates the key technical characteristics, typical application scenarios and scientific maintenance methods of cross universal shaft couplings in marine transmission s

ystems. Boasting comprehensive advantages including large angular compensation capacity, compact structural layout, high transmission efficiency and strong load-bearing capacity, cross universal shaft couplings serve as core connecting components for critical transmission links such as marine propulsion shafting, azimuth thruster units and deck machinery. Research indicates that the transmission efficiency of SWC-type cross universal couplings ranges from 98% to 99.8%, with an allowable shaft deflection angle of 15° to 25°. Double cross universal shaft couplings are widely adopted in marine propulsion shafting, which can effectively compensate radial and axial misalignments between the main engine and propeller. Nevertheless, the unique harsh operating conditions of ships — high humidity and heavy salt spray, impact loads under variable working conditions, and confined installation space — pose severe challenges to the long-term stable operation of cross universal shafts. Common failure modes for marine applications include journal wear of cross shafts, bearing breakdowns, bolt loosening or fracture, and lubrication failure. This paper puts forward a systematic maintenance scheme covering lubrication management, periodic inspection, sealing protection and corrosion control. It also prospects the innovative development trends of cross universal shaft couplings, such as carbon fiber composite shafts and intelligent couplings integrated with sensors.

Introduction

A cross universal shaft coupling is a precision mechanical component used to connect two transmission shafts with misaligned axes, enabling continuous rotation and reliable torque transmission at an angular offset between shafts. In marine engineering, cross universal shaft couplings undertake core transmission tasks including connecting the main engine and propeller shafting, driving azimuth thruster units, and powering deck machinery. During navigation, the hull is continuously subjected to waves, wind and variable loads, which inevitably induce angular deflections and positional displacements of the transmission shafting. Benefiting from excellent axial, radial and angular compensation performance, cross universal shaft couplings can well adapt to such dynamic deformations and ensure smooth and efficient power transfer across all transmission links.

Unlike land-based transmission systems, marine transmission equipment operates under far harsher environments: damp salt spray accelerates metallic corrosion; propellers submerged in seawater generate highly fluctuating impact load spectra; narrow engine room spaces impose strict compactness requirements on transmission devices. Therefore, proper type selection, standardized installation and regulated maintenance of cross universal shaft couplings are of vital engineering significance for guaranteeing the reliability of marine power systems, extending the overall service life of shafting and reducing navigation safety hazards. This paper systematically elaborates on the technical application and maintenance strategies of cross universal shaft couplings in marine sectors from perspectives of technical principles, marine applications, failure analysis and maintenance essentials.

1. Technical Principles and Characteristics of Cross Universal Shaft Couplings

1.1 Basic Structure and Operating Principle

A cross universal joint coupling mainly consists of two universal joints and an intermediate shaft. The core parts of each universal joint include a driving yoke, a driven yoke and an intermediate cross shaft, which are connected via hinge joints. When the driving shaft rotates, power is transferred from the driving yoke to the cross shaft, and then delivered to the driven yoke, realizing continuous torque transmission with an angular offset between two axes. For marine propulsion shafting, double cross universal couplings are mostly adopted to maintain synchronous rotation between driving and driven shafts and facilitate repair and replacement.

Cross universal shaft couplings are classified into multiple types based on structure and dimensions. The SWC-type cross universal coupling features an integrated yoke design without bolted connections. Since no bolts are required to fix cross shaft bearings, the weak point of bolt loosening or fracture is completely eliminated, greatly improving transmission reliability while simplifying routine maintenance. The large-size SWP-type cross universal coupling is designed for high-power transmission scenarios, with a swing diameter ranging from 600 mm to 1200 mm, a nominal transfer torque up to 12500 kN·m and an allowable shaft deflection angle of 5° to 15°.

1.2 Core Technical Parameters and Performance Features

Cross universal shaft couplings occupy an important position in the transmission industry. Their core performance parameters cover swing diameter, nominal torque, fatigue torque, allowable shaft deflection angle, maximum rotational speed and transmission efficiency. For marine industrial applications, SWC-type cross universal couplings are generally selected with nominal torque ranging from 2.5 to 1000 kN·m and an allowable deflection angle of 15° to 25°.

Compared with conventional transmission structures, cross universal shaft couplings possess the following prominent technical advantages:

Large angular compensation capacity
The SWC type allows a shaft deflection angle of 15°–25°, while the SWP type reaches approximately 10°, effectively accommodating shaft misalignments caused by hull deformation and wave impacts during navigation.
Compact structural design
The SWC-BH type adopts integrated yoke construction, featuring a more compact overall size than other couplings with identical swing diameter, especially suitable for machinery with limited swing space.
Outstanding load-bearing capacity
Under the same swing diameter, cross universal shaft couplings transmit larger torque, presenting obvious advantages for marine propulsion units restricted by swing dimensions during type selection.
High-efficiency transmission performance
Under ideal operating conditions, the transmission efficiency of SWC-type cross universal couplings reaches 98%–99.8%, delivering remarkable energy-saving effects and fitting high-power transmission applications perfectly.
Long service life and cost-effectiveness
Wide adoption of bolt-free structures cuts maintenance frequency, extending service life by 30%–50% compared with traditional models.

In addition, cross universal shaft couplings are equipped with axial expansion compensation functions. The intermediate shaft is fitted with a sliding spline assembly that can effectively compensate axial displacements induced by hull thermal expansion and assembly errors, bringing greater flexibility for installation, commissioning and operational maintenance.

2. Typical Applications of Cross Universal Shaft Couplings in Ships

2.1 Connection of Marine Propulsion Shafting

Marine propulsion shafting represents the most critical application field for cross universal shaft couplings. During navigation, the axes between the main engine and propeller constantly generate angular deflections and positional offsets under combined influences of hull deformation, wave impacts and main engine vibration. Cross universal shaft couplings are capable of adapting to such dynamic changes, sustaining stable power transmission and ensuring the reliability of marine propulsion systems under all sea conditions.

In practical engineering, double cross universal shaft couplings are widely used in marine propulsion shafting. Composed of two universal joints connected by an intermediate shaft, they compensate angular misalignment between two shafts while resolving radial offset and axial displacement, so as to guarantee precise synchronous rotation of the driving shaft (main engine output shaft) and driven shaft (propeller shaft). Vibration characteristic studies show that the deflection angle of couplings exerts a significant impact on marine shaft vibration: larger deflection angles generate higher additional bending moments and torques inside the coupling, resulting in elevated vibration levels. Hence, controlling the layout angle of universal joints within a reasonable range during propulsion system design and installation carries great engineering value for restraining shaft vibration and extending the service life of transmission components.

2.2 Z-Type Azimuth Propulsion Units

Azimuth thruster units, also known as Z-drive transmission systems, are widely applied power propulsion equipment for inland river cargo vessels, cruise ships and engineering ships operating along the Yangtze River. Its core working principle can be summarized as follows: power output from the main diesel engine passes sequentially through couplings, clutches, universal-joint transmission shafts, upper horizontal shafts, upper spiral bevel gears, vertical shafts, lower spiral bevel gears and lower horizontal shafts, and finally transfers to the propeller.

Within this power transmission chain, cross universal shaft couplings act as a bridge connecting the main engine and the input shaft of Z-drive units. As azimuth thrusters feature 360° rotation capability, the relative positions of transmission shafts keep changing during steering operations, where the angular compensation capacity of cross universal shaft couplings plays a decisive role. Benefiting from superior maneuverability, Z-drive propulsion units enable high-flexibility operations such as in-situ turning and sideways shifting of vessels. Optimized designs can achieve over 30% energy savings under equivalent power output.

Domestic technological progress in azimuth thrusters has been remarkable in recent years. The tugboat industry at Nanjing Port took the lead in launching a localization renovation project for spare parts and maintenance of Rolls-Royce azimuth thrusters, forming an industry-recognized pioneering renovation case. Large dynamic positioning azimuth thrusters independently developed by Zhenhua Heavy Industries have been successfully applied to offshore engineering equipment such as crane vessels, filling domestic technological gaps in relevant fields.

2.3 Drive for Marine Deck Machinery

Apart from core propulsion systems, cross universal shaft couplings are extensively utilized for marine deck machinery, including windlasses, capstans, deck cranes and steering gears. Most of such equipment bears heavy and impact loads with limited installation space constrained by deck structures. With high load-bearing capacity and compact dimensions, cross universal shaft couplings serve as ideal transmission devices linking power sources (electric motors or hydraulic motors) and mechanical loads.

For marine windlass systems, huge instantaneous loads occur during anchor dropping and lifting, imposing stringent requirements on the impact resistance and reliability of transmission components. Nevertheless, fracture failures of universal couplings frequently emerge in practice, caused by unqualified machining precision, improper assembly and accumulated fatigue after long-term operation. For deck cranes, universal couplings are also required for transmission of slewing mechanisms and jib luffing mechanisms to compensate assembly errors and operational deformations and maintain normal equipment operation.

3. Type Selection and Design Essentials of Marine Cross Universal Shaft Couplings

3.1 Comprehensive Type Selection Based on Load Characteristics and Bearing Service Life

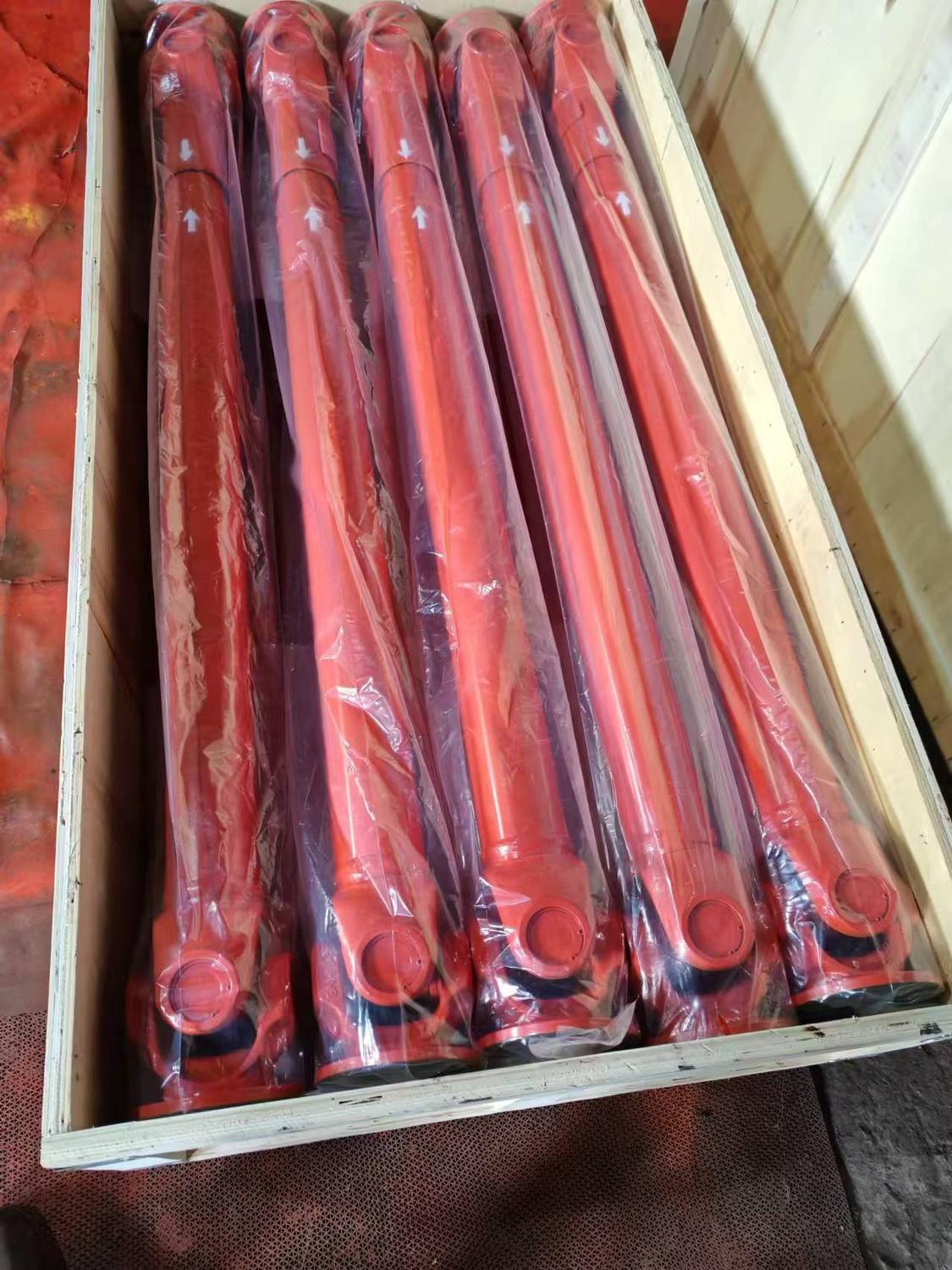

small size cardan shaft.jpg

Proper selection of cross universal shaft couplings is the primary prerequisite for their long-term reliable operation in marine transmission systems. Four core indicators are generally taken into account during selection: calculated torque, nominal torque, fatigue torque and bearing service life. The calculated torque shall be derived by combining operating torque, load factor and service factor, and must not exceed the nominal torque of the coupling. For transmission systems under alternating loads, further verification is required to confirm that the calculated torque stays within the allowable range of fatigue torque, so as to prevent premature component failure during long-term operation.

For marine propulsion units, propellers work submerged in water with loads fluctuating drastically along with vessel speed, draft and sea conditions, presenting obvious high-amplitude and wide-band impact load features. Load alternations and rapid load variations are particularly prominent for frequently maneuvered vessels such as tugs and engineering ships. Accordingly, fatigue torque rather than static nominal torque shall be adopted as the primary reference for type selection under such working conditions. In addition, bearing service life calculation must be strictly completed in the design phase. Bearings are the most failure-prone key components of cross universal shaft couplings, and classification societies and shipowners usually require bearing life verification reports as mandatory documents for selection approval.

3.2 Installation Layout and Classification Society Certification Requirements

During the installation layout of marine propulsion systems, the positioning accuracy of cross universal shaft couplings directly determines the operating performance of transmission systems. For certain azimuth thrusters, comprehensive analysis and mathematical modeling of relevant parameters shall be carried out according to the layout characteristics of universal couplings in the design stage to select the optimal installation scheme.

In terms of certification for marine products, domestic universal couplings used in Z-type azimuth propulsion units lack unified classification society product certificates at present, mainly due to imperfect special inspection specifications for universal couplings. This issue restricts the localization progress of Z-drive propulsion units to a certain extent. Domestic marine survey authorities and manufacturers are jointly promoting standardized procedures covering three links: design and selection review, component inspection and assembly inspection, aiming to establish unified technical standards and lay a foundation for large-scale application of domestic marine universal couplings.

Special attention shall be paid to the following key points in installation practice:

Oil hole screws on cross shaft end faces shall be placed at easily accessible positions for subsequent lubrication and maintenance.
Dye penetrant inspection shall be performed on flange yokes and welded yokes after installation to eliminate hidden crack risks.
The phase difference between yokes at both ends during assembly shall be controlled within 10° to mitigate additional vibration during transmission.

3.3 Anti-Corrosion Sealing Design Strategies

Ships operate long-term in humid, heavy salt spray environments, making anti-corrosion design a priority consideration for cross universal shaft couplings. Marine salt fog and water vapor can easily penetrate into bearings and spline assemblies, accelerating metallic corrosion and lubricant degradation and ultimately leading to transmission breakdown.

Surface treatment serves as a core measure to enhance anti-corrosion performance. A protective coating formed on component surfaces isolates corrosive media from metal substrates and slows down corrosion progression. Common surface treatment methods include spraying high-performance anti-corrosion paint, zinc plating and passivation, and sherardizing. In terms of material selection, universal couplings manufactured from stainless steel (such as Grade 304 or 316) deliver excellent rust resistance and seawater corrosion resistance, especially suitable for propulsion units below the waterline.

Sealing structure design is equally critical. Marine universal couplings are normally equipped with protective housings to block seawater and dust intrusion. Grease coated inside protective housings provides both lubrication and partial corrosion protection. For universal couplings installed above decks or in semi-open areas, integrated sealing structures combined with positive pressure ventilation design can further isolate erosion from salt fog and external contaminants.
