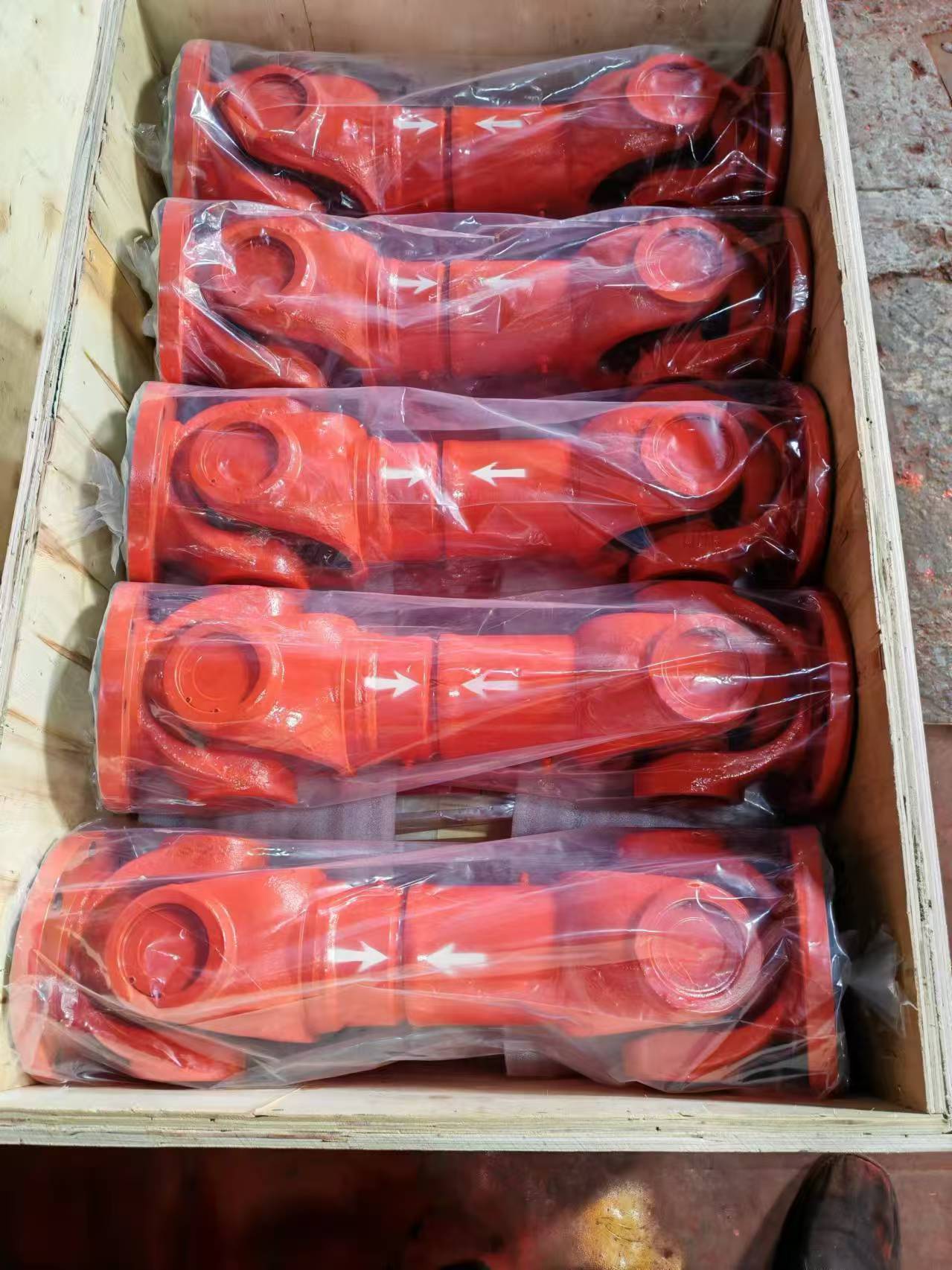

SWC180-WH Type Cardan Shafts

SWC180-WH Type Cardan Shafts :

1. Telescopic capability: Facilitates installation and adjustment, meeting the requirements of different distances and equipment movement. It features a small size and high torque.

2. Key feature: Possesses strong angular compensation capacity, accommodating an axial deflection angle of 15% to 25%.

3. The SWC-DH universal coupling adopts an integral yoke, ensuring stable and reliable load-bearing, compact structure, high transmission efficiency, low noise, long service life, and convenient maintenance.

4. Widely used in the shaft transmission of metallurgical machinery, heavy machinery, petroleum equipment, engineering machinery, lifting and transportation machinery, vehicles, light industry equipment, and precision machinery.

5. Enables smooth operation, low noise, and easy assembly, disassembly, and maintenance.

6. High transmission efficiency: Its transmission efficiency reaches 98% - 99.8%. When used for high-power transmission, it delivers significant energy-saving effects.

The integral yoke cross-shaft universal coupling can be widely applied in the mechanical shaft systems of metallurgy, lifting, engineering transportation, mining, petroleum, shipping, coal, rubber, papermaking machinery, and other heavy machinery industries for torque transmission. The SWC-type cardan shafts features an integral yoke structure without bolt connections. Since bolts are not used for fixing the cross-shaft bearings, bolt loosening or breakage is avoided. This design enhances the strength of this vulnerable part, improves reliability, extends service life, and simplifies maintenance. It is used to connect two shafts whose axes are not in the same straight line. Its rotating diameter D ranges from 100 mm to 810 mm, and the transmitted nominal torque Tn ranges from 1.25 kN·m to 2500 kN·m.

The axis deflection angle β is ≤ 25°. The classification is as follows:

• Selection Example: SWC180, WH type, minimum length L = 480

• Order Mark: SWC180WH-480
