Applications and Functions of Universal Joint Couplings

Applications and Functions of Universal Joint Couplings

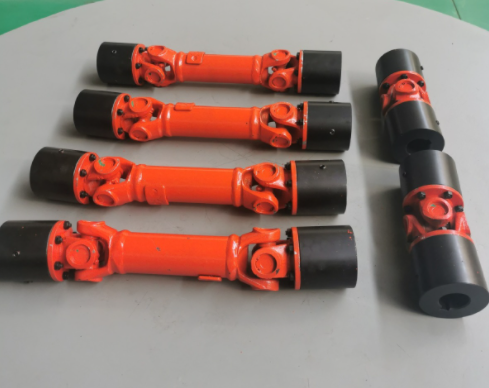

Universal joint couplings (also called cross-type　universal joints) are widely used components across multiple industries,including metallurgy, petroleum, heavy machinery, automotive, andgeneral mechanical engineering. They enhance production efficiency and aresuitable for high-temperature, high-speed, and corrosive environments.

Key Applications by Industry

1. Petroleum Industry

• Functions:

• Used in oil extraction, pumping, and drilling operations.

• Accommodates complex, variable load conditions and angular      misalignment.

• Features:

• Multiple models available to suit different equipment (e.g.,      derricks, pumps).

• Resists corrosion from harsh media (e.g., seawater,      chemicals).

2. Heavy Machinery

• Functions:

• Transmits torque efficiently in excavators, cranes, and      mining equipment.

• Features:

• High reliability under low-lubrication      or high-load conditions.

• Tolerates dust, vibration, and extreme temperatures.

3. Metallurgy Industry

• Functions:

• Replaces gear couplings in overhead cranes to reduce      backlash-induced impacts.

• Advantages:

• Minimizes gear wear and failure rates in continuous      operations.

• Enhances shock absorption compared to rigid      couplings.

4. Automotive Industry

• Functions:

• Connects the engine, clutch, and transmission in rear-wheel-drive      vehicles.

• Benefits:

• Reduces vibration, noise, and component wear.

• Extends drivetrain lifespan by compensating      for shaft misalignment.

Core Advantages of Universal JointCouplings

✅ High Angular Misalignment Compensation – Allows upto 15–30° offset between shafts.
✅ Durability – Performs reliably in high-speed(3000+ RPM) and high-torque applications.
✅ Versatility – Adapts to corrosive,high-temperature, or low-maintenance environments.
✅ Vibration Damping – Lowers stress on connectedmachinery.

Technical Considerations

• Maintenance: Requires     periodic grease lubrication for optimal performance.

• Limitations: Not     ideal for precise synchronous motion (use CV     joints or double universal joints instead).

• Material Options: Alloy     steel (standard), stainless steel (corrosion-resistant),     or composite coatings (extreme wear resistance).

Conclusion

Universal joint couplings are indispensable forindustries requiring flexible, robust power transmission underchallenging conditions. Their ability to reduce downtime andmaintenance costs makes them a preferred choice over rigid couplingsin dynamic applications.

For high-precision orultra-high-speed needs, consider upgraded designs (e.g., precision-balancedor sealed variants).
