Application of Cross Shaft Universal Couplings in Medium & Heavy Plate Mills

Preface

Medium and heavy plate mills are core equipment for producing high-quality steel plates in the modern iron and steel industry. Their main drive systems undertake the critical task of transmitting motor power to work rolls stably and efficiently. As a vital component connecting the reducer output shaft and roll input shaft within such systems, cross shaft universal couplings must not only transmit enormous rolling torque (ranging from several thousand to tens of thousands kN·m) but also compensate complex axial, radial and angular displacements induced by rolling force, thermal expansion and installation errors. Their performance directly determines the mill’s transmission efficiency, rolling accuracy, operational stability and equipment service life. With continuously rising requirements for plate quality, production efficiency and equipment reliability, targeted application analysis and optimized design of universal couplings have become a key research subject to improve the overall technical level of medium and heavy plate mills.

I. Operating Characteristics of Medium & Heavy Plate Mills and Core Requirements for Couplings

Medium and heavy plate mills operate under extremely harsh working conditions, imposing special and stringent demands on couplings:

1. Ultra-large torque and heavy impact load During rolling processes, drastic torque shocks and pulsations occur especially during steel plate biting, ejection and thickness adjustment. Couplings must feature outstanding instantaneous overload resistance and anti-fatigue performance.

2. Compensation for complex multi-dimensional displacements Massive rolling forces trigger elastic deformation of roll chocks and mill housings. Coupled with foundation settlement and thermal expansion of equipment, the spatial relationship of transmission axes changes dynamically. Couplings are required to deliver large-angle compensation (normal working angle: 10°–15°, maximum over 25°) and large axial displacement compensation capacity.

3. High rotating speed and superior transmission stability Modern mills pursue high rolling speeds. Couplings must run smoothly at high speeds with low vibration and noise to guarantee surface quality and dimensional precision of steel plates.

4. Adaptability to extreme environments The rolling zone is exposed to high-temperature radiation, water vapor and iron oxide scale. Couplings shall possess excellent sealing, corrosion resistance and heat dissipation performance.

II. Key Application Analysis of Cross Shaft Universal Couplings in Medium & Heavy Plate Mills

Thanks to robust structure, high load-bearing capacity and relatively convenient maintenance, cross shaft universal couplings are widely adopted in main drives, vertical roll drives and partial auxiliary drives of medium and heavy plate mills.

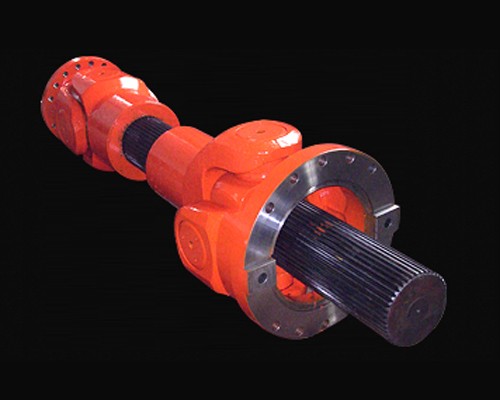

1. Application in main drive systems Installed between reducer outlets and input ends of work rolls/backup rolls, they serve as the main power transmission backbone. Large, heavy-duty cross shaft universal spindles are generally adopted. Their design focuses on resolving critical issues including journal strength under ultra-high torque, bearing service life, and balance between torsional stiffness and bending stiffness of spindle bodies.

2. Application in vertical roll drives Vertical roll drives control slab width. Restricted installation space and frequent angle variations demand couplings with compact structure, powerful displacement compensation and fast response.

3. Highlighted application advantages Compared with gear-type spindles, cross shaft couplings present merits including lower lubrication requirements, intuitive maintenance inspection and lower single-part replacement costs. They demonstrate exceptional reliability particularly under heavy-load, large-angle and harsh environmental working conditions.

III. Optimized Design Strategies for Medium & Heavy Plate Mill Service

Systematic optimization covering structure, materials, lubrication & sealing and condition monitoring is required to address the above operating conditions and challenges.

3.1 Reinforced Design of Core Components (Cross Shafts and Yokes)

Cross Shaft Optimization

· Materials & manufacturing processes Vacuum-degassed high-hardenability alloy steel (e.g. 18Cr2Ni4WA) is adopted, treated via carburizing quenching or deep ion nitriding to achieve journal surface hardness of 58–62 HRC, hardened layer depth ≥ 2 mm and high toughness at the core. Shot peening introduces residual compressive stress at journal fillets to inhibit fatigue crack initiation.

· Structural optimization Large-radius or elliptical curve transitions are designed for journal-shaft junctions to drastically reduce stress concentration factors. Medium-frequency induction hardening on journals realizes an optimized hardness gradient distribution.

Yoke (Trunnion) Optimization

Finite element topology optimization technology is applied to achieve lightweight design while maintaining sufficient strength and rigidity, lowering rotating mass. Geometric precision and surface finish of bearing housing mounting holes are optimized to guarantee matching accuracy with bearing outer rings and mitigate fretting wear.

3.2 Upgrade of Bearing Systems

· Bearing selection High-precision heavy-duty cylindrical roller bearings or specially designed needle roller bearings are selected to boost load capacity and limiting rotational speed.

· Bearing housing structure Internal oil passages inside bearing housings are optimized to deliver lubricant directly to roller contact zones. Split housings facilitate bearing replacement.

· Preload control Disc spring assemblies apply precise axial preload to eliminate clearances and improve system rigidity and transmission accuracy.

3.3 Innovation of Lubrication and Sealing Systems

· Intelligent lubrication system A centralized automatic lubrication system dispenses high-performance extreme-pressure lithium grease in real time or at fixed intervals and quantities based on working angle, rotating speed and load. Integrated oil monitoring sensors analyze grease status continuously.

· High-efficiency composite sealing A combined structure of multi-lip seals and non-contact labyrinth seals is developed. Lip seals are made of high-temperature and wear-resistant fluororubber; labyrinth gaps are optimized through aerodynamic analysis to effectively block water and dust ingress and prevent grease leakage.

3.4 Optimization of Dynamic Performance and Thermal Management

· Dynamic balancing Complete coupling assemblies (cross shafts, yokes, bearing housings, etc.) undergo high-speed dynamic balancing with balancing accuracy up to Grade G2.5 or higher to minimize centrifugal vibration at high rotational speeds.

· Thermal management For high-temperature working zones, cooling fins are added externally on yokes or bearing housings; internal circulating air/oil cooling channels are explored as an alternative solution.

3.4 Integration of Condition Monitoring and Predictive Maintenance

· Sensor integration Wireless vibration acceleration sensors and temperature sensors are mounted on key positions of bearing housings to monitor operating conditions in real time.

· Data analysis and early warning Edge computing gateways collect operational data. Algorithms analyze vibration spectra and temperature trends to establish equipment health baselines and realize early warning of incipient faults such as bearing wear and insufficient lubrication.

· Digital twin assistance Digital twin models of critical couplings are built. Combined with measured load spectrum virtual simulation, fatigue service life can be predicted to guide preventive maintenance schedules.

IV. Application Benefits and Outlook

Implementation of the above optimized designs is expected to deliver remarkable benefits for medium and heavy plate mills:

1. Improved reliability: Service life of key components extended by 30%–50%, and unplanned downtime caused by unexpected faults greatly reduced.

2. Higher production efficiency: Superior transmission stability allows higher rolling speeds and a higher qualified rate of steel plates.

3. Lower operation costs: Optimized lubrication and sealing cut grease consumption and contamination; predictive maintenance reduces unplanned overhaul work and spare parts inventory expenses.

4. Enhanced safety: Real-time condition monitoring eliminates risks of severe accidents such as sudden coupling fracture.

In the future, with deep integration of new materials (high-performance composite materials), advanced manufacturing technologies (additive manufacturing for complex structural parts) and artificial intelligence diagnostic technology, cross shaft universal couplings will evolve toward lighter weight, higher strength, greater intelligence and maintenance-free operation. They will provide stronger support of fundamental components for the upgrading of medium and heavy plate mills and the entire heavy equipment manufacturing industry.
